Welcome to My Blogsite

You will find on this blog a collection of my work mostly done in Google SketchUp and Rendered in either Vray for Sketchup, Hypershot, Vray Max, LightUp and Podium.

Download Free Google SketchUp
Download Vray SKetchUp (you need to register in order to download)
Download Podium Evaluation copy Do you want to try Bunkspeed Shot? Click HERE.


Sunday 30 October 2011

WIP: GOBO Lighting

Playing with GOBO lighting. ALso WIP for my 4th Lighting tutorial


Saturday 29 October 2011

Nomeradona SketchUp Style

Exploring some SketchUp styles. Trying to do my personal styles.

Brushwork 1


Scratchwork


Brushwork2



Grassy Background

Saturday 22 October 2011

TIP: Correcting textures that are not reflecting

Have you wonder having the same vray result in your render? Textures that are not reflecting like the image below?

Photobucket
Textures not reflecting

This is a simple tip how to correct this.

Step 1: Monochrome view.
Go to Face style and select Monochrome


Photobucket
Monochrome Face Style

In this monochrome view, you will notice that those textures that are not reflecting were actually inverted (reverse or negative face).

Photobucket
Negative Faces

Step 2: Reverse face and apply texture

The easiest way to correct this is by reversing the inverted faces and apply the texture.
Photobucket
Reverse face

Or apply the same texture on the other side.
Photobucket
Apply texture on the other side

Photobucket
Texture applied on the back side

Textures are reflecting correctly.

Photobucket

Thursday 20 October 2011

Lighting With Vray Sketchup, Definitive Guide 3 PArt 1

This is a two part tutorial of my third tutorial series with Lighting with Vray Sketchup. This third lighting tutorial focuses with  "Studio Lighting". For those of you who want to see my other tutorials please click HERE.

Introduction

In this tutorial we will see how to set up a simple studio scene; will look at how professional photographers set up their studio lighting; and finally how to simulate these lighting using Vray rectangular and omni lights.

Step 1: Modeling the studio scene.

I will be using this profile for my studio background wall

Photobucket
Studio Scene Profile

Next, I created an arc with 48 sides
Photobucket
48 Sides arc drawn

I used the follow me tool to create this.
Photobucket
Follow me tool was used

I used soften edges to smoothen the whole thing.
Photobucket
Soften Edges

I imported  a low resolution model from the 3D Warehouse and placed it in the middle of the scene. The model was further smoothed using "smooth and subdivide script". Download this Motorbike HERE
Photobucket
Main subject imported and placed in the middle

Here is the close up camera view.
Photobucket


Step 2: Studio Lighting

One of the subject I teach in the school is Digital Photography class. In our school we love to play studio lighting. For those of you who want to know more, how professional photographer set-up their studio lighting, here is my number one resource SITE for studio set up. Through this site, I have learned so much about studio lighting.

In this site, they explain clearly about different equipments like soft boxes, nbarn light, diffusers etc. They also focus on the theory of light in general. So if you are an avid photographer, this is a must site to visit.

Light Theory

Using typical soft box

There are different ways to set up studio lights. It depends of what mood and what type of lighting you want to accomplish; ghetto, high key, low key etc. In this particular tutorial, I will be focusing on common "high key lighting set-up.


Photobucket
Typical High Key lighting set-up

The image above represents the common high key lighting set-up. The subject is in the middle; two background lights shooting on the white background; the main soft box light in front; and the secondary light reflector on the right.

Of course there are different ways to set up studio lighting, but this thing wont be covered in this tutorial.

Photobucket
Set up to be used in this tutorial


The above layout represents the kind of lighting I want to do in this tutorial while the image below represents these lighting elements with VRAY Lights.

Photobucket
Lighting set-up represented by Vray Lights
The image below shows the 3D studio set-up. The main light is a huge Vray rectangular light. The strip lighting on the right are four different vray rectangular lights (invisible), while the strip light to the left is a single Vray rectangular light (remodeled). Finally the Omni lighting (affect specular, shadow were untick) serves as background lighting.


Note: The bigger the area of the Vray rectangular light the softer the shadow.
Photobucket
The set-up


Step 3: Vray Light Settings

Next is we need to set the parameters of our lighting. I put the main light multiplier @5, secondary strip lights@3 and background omni light @1.

 The image above shows my lighting settings.

Download the VISOPT that I am using in this render.

Here are the render images. Below shows a birds eye view on the effects of lighting to the main model.

Photobucket

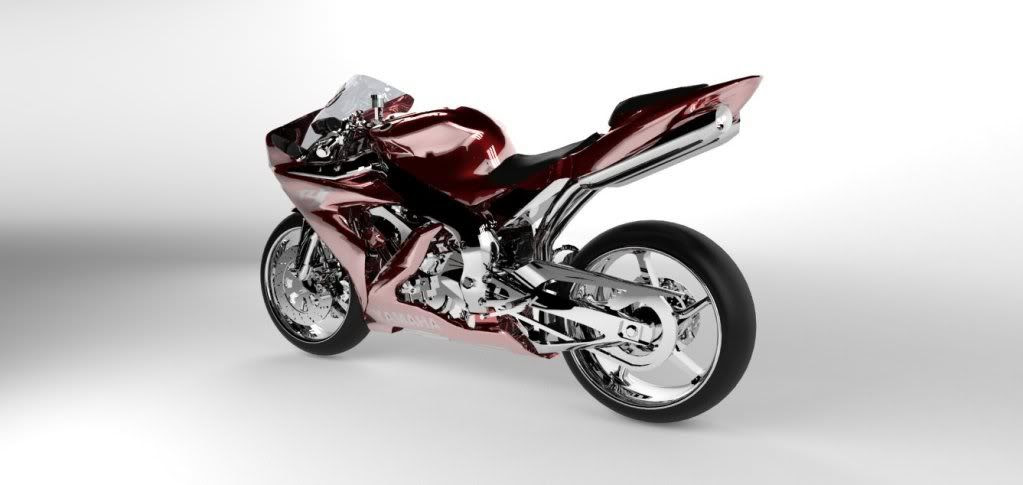

Here is a render with my normal camera view set-up. In the render below the specular effect of strip lighting is very obvious.
Photobucket

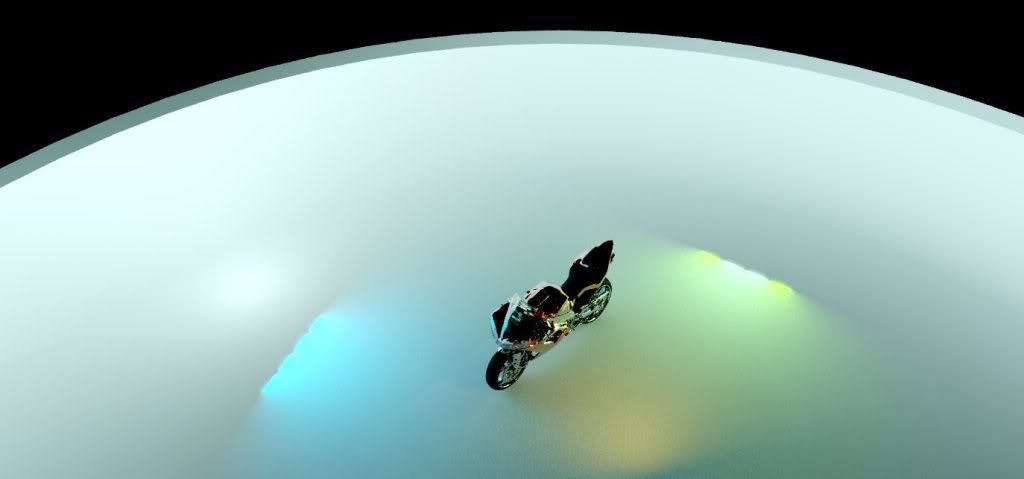

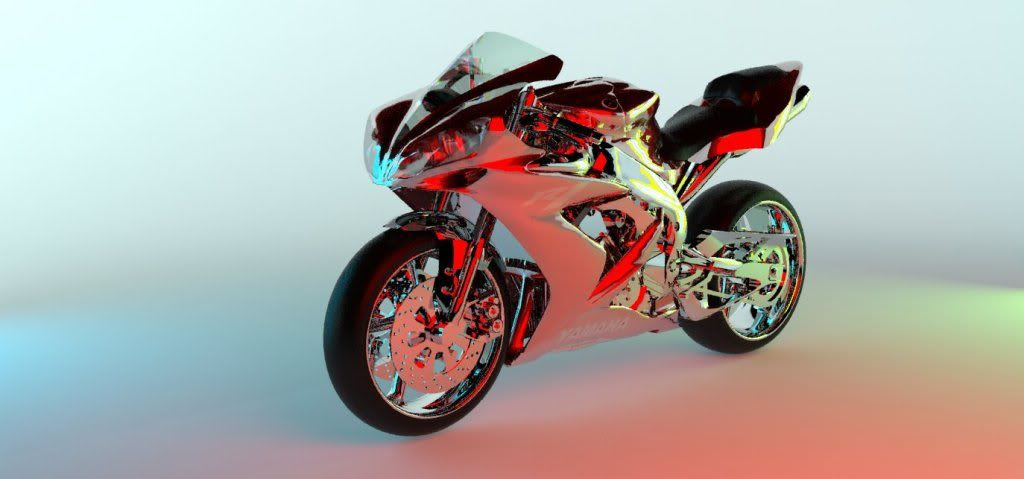

To extend exploring this tutorial, we can also experiment by changing the light colors just light gels that they put in a typical photographic studio lighting.

Photobucket

Photobucket

Photobucket

I hope this tutorial is useful. Second part of this tutorial is coming soon.

Nomeradona

Thursday 13 October 2011

Clay render with lines, bumps and reflection

Clay render



Bump added on top of clay render (normal map pass)


Reflection added (reflection pass)


Lines added (SketchUp style)



Let me try to add including the render image

Wednesday 12 October 2011

Thanks to Sketchucation and CatchUp

Thanks to Mike Lucey, Sketchucation.com and Catchup for putting this article. Please access it HERE.

Tuesday 11 October 2011

Saturday 8 October 2011

Bedroom Interior Rendering

Bedroom Interior Rendering
