Step 1. The model
Here is a 2d model of the parol that I will be modeling.

Step 2: Tracing the Lines
Since we have the reference image, all we need is to trace each lines. I applied semi transparent material so that I can see what I am tracing below. After tracing on part, I will copy and rotate it 4 times.

Here is the finished lines and arcs

Step 3: Convert Lines into tubes
Using the script convert lines into tubes, I will convert the traced lines into cylinders basically.

In order to optimize the number of sides, I only used precision 4 (4 sides)

Here is an image showing the converted lines into tubes.

Close up

Step 4: Copying, mirroring and adding the sides.
I copied the completed face and made it into component. Then I flipped the copy using mirror tool. I added the sides using "extrude line along vector". Again this is a shortcut of doing faces.

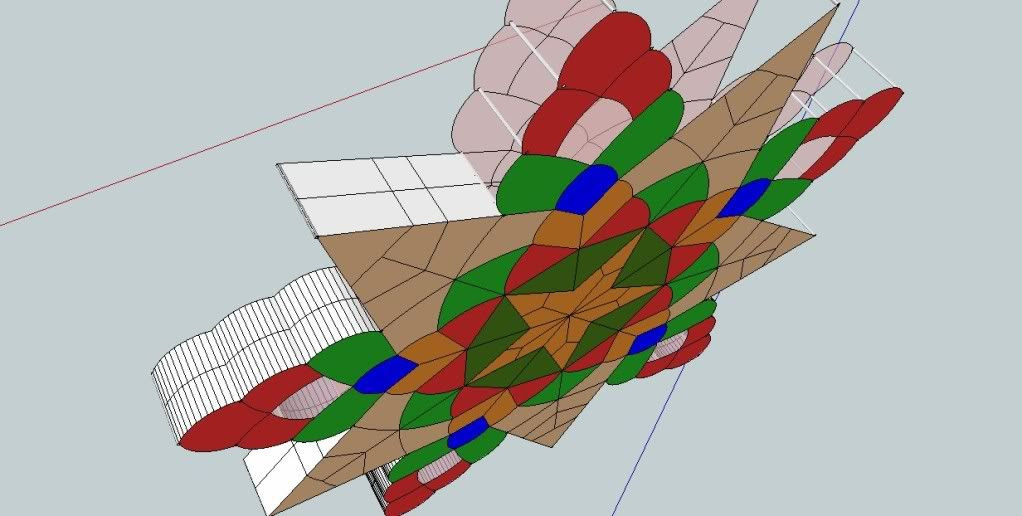

Here is the finish model.

Details
